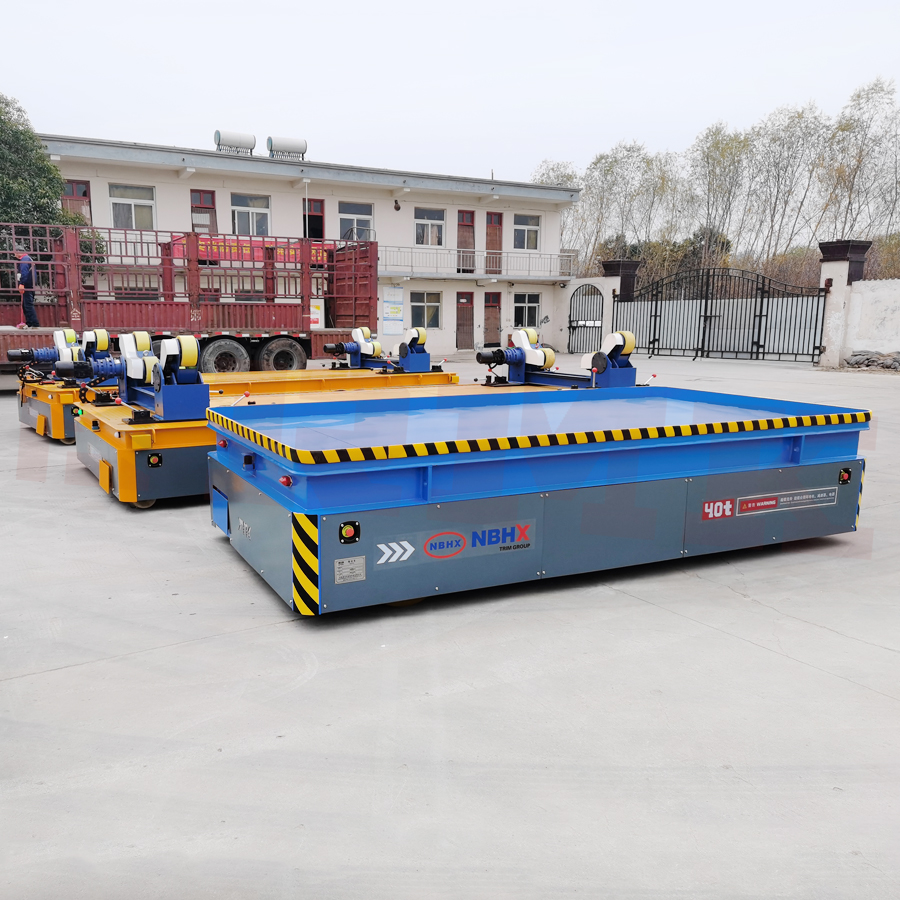

Heavy Load 40 Tons Transfer Car Apply For Metallurgical Plant
Our 40 Tons Transfer Car Apply For Metallurgical Plant Has Big Load Capacity Because We Have Used Steel Structure Bearing Frame. We Also Fit Lifting Holes And Polyurethane Solid Rubber-Coated Wheels. It's Battery Powered Automated Guided Vehicle Smart Trackless Flatbed Transfer Cart. It Can Also Turn Around For 360 Degrees Without Moving Forward Or Backward. As Per Clients' Request, We Can Provide All Kinds Of Automated Guided Vehicle Smart Trackless Flatbed Transfer Cart For You According To The Working Environment And Floor Condition.
Our Main Products Include Battery Operated Automated Guided Vehicle Trackless Flatbed Transfer Cars, Hydraulic Motor Driven Mobile Trolley, Cable Operated Transfer Trolley, Industrial Trailers, Non-Powered Transfer Cart, Electric Rail Car, Motorized Transporter, Coils Transport Trolley, Ladle Transfer Trolley And So On. The Automated Guided Vehicle Trackless Flatbed Transfer Cars Can Cross Workshop Turnover And High Security ,Strong Bearing Capacity.
40 Ton trolley with hydraulic Lifting Platform steerable transport platform
The steerable transport platform is powered by power or diesel generating and it can realize double way moving and turning. The trolley turns around any fixed wheel and turns 360 degree. The turning radius is the trolley length.
Composed parts of steerable transport platform
Cart frame, DC motor, speed reducer, electric control box, storage battery, intelligent charger, driving device, fixed wheels, swivel wheels, braking device, controller, remote-controller, speed controller, lighting alarm and sound alarm, safety bumper, operation device and safe detecting device.
Application of steerable transport platform
It is widely used in automobile production, shipbuilding industry, steel and iron transfer and large-size machine equipment transfer and assembly.
Advantages of steerable transport platform
It can realize double way moving and 360 degree turning.
No damage to the ground surface painting.
No track constraint.
High safety level. Zero emission. Lower Noise. Environmental protection design.
| Technical parameters for electric transfer carts |
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure |
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground |
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 |
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 |
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop |
| 13 | control method for turning | control button |
| 14 | turning structure | mechanical |
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 |
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance |
| 23 | charger's installation | installed on cart | split-type |
| 24 | charger function | automatic charging |
| 25 | radar control | 3-0.3m, automatic stop for obstacles |
| 26 | warning equipment | sound and light |
| 27 | other functions | turning light, night light and power display |
